Properties of Triangle - Formula

0 Questions 2229 Views

Introduction:

A triangle consists of three side and three angles which is collectively known as the six elements. In a triangle ABC, the side opposite to ∠A is denoted by '

', the side opposite to ∠B is denoted by 'b' and the side opposite to ∠C is denoted by 'c'.

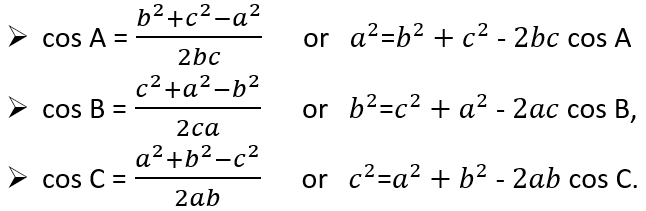

The circum-radius and the area of triangle are denoted by R and ∆ respectively. Also, s is the semi-perimeter of triangle such that 2s=(a + b + c) and r is the in-radius where as r₁, r₂, r₃ are the ex-radii corresponding to the angles A, B, C.The Cosine Law

Click Here for the proof of Cosine Law.

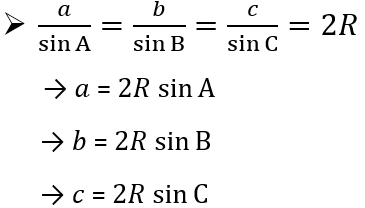

The Sine Law

Click Here for the proof of Sine Law.
Click Here for the proof of Sine Law in terms of Circum-Radius.

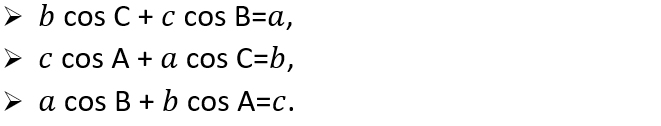

The Projection Law

Click Here for the proof of The Projection Law.
The Half-angle Formulae

Click Here for the proof of The Half-angle Formula.The Tangent Law

Click Here for the proof of Tangent Law.
The Area of a Triangle

Click Here for the proof of The Area Of a Triangle.
