Elasticity

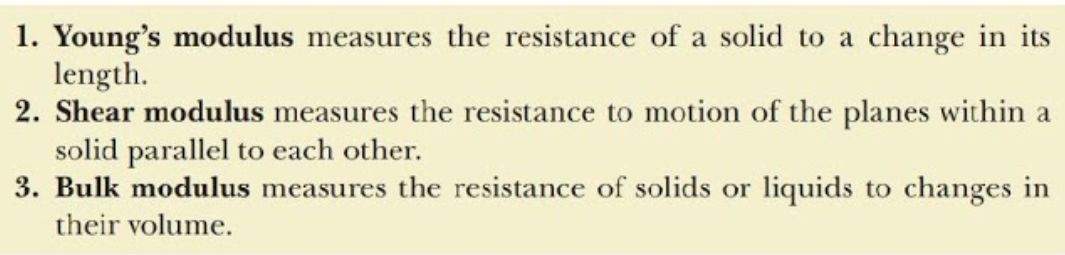

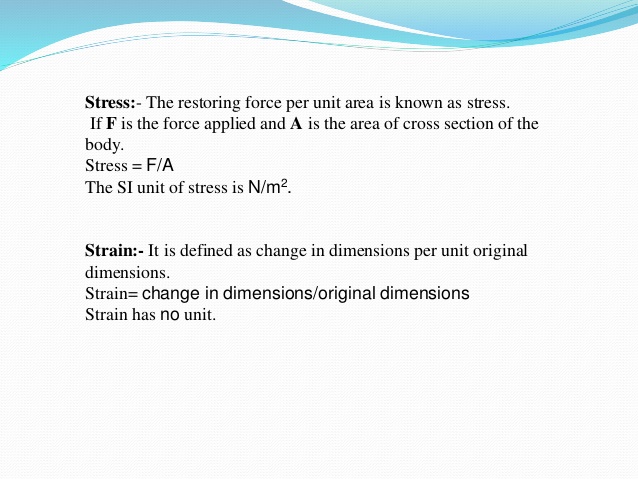

Young’s Modulus: Elasticity in Length

The tensile stress is the ratio of the magnitude of the external force F to the cross-sectional area A, where the cross section is perpendicular to the force vector. The tensile strain in this case is defined as the ratio of the change in length ∆L to the original length Li.

We define Young’s modulus by a combination of these two ratios:


Young’s modulus is typically used to characterize a rod or wire stressed under either tension or compression. Because strain is a dimensionless quantity, Y has units of force per unit area.


Elastic Limit

The elastic limit of a substance is defined as the maximum stress that can

be applied to the substance before it becomes permanently deformed and does not return to its initial length. It is possible to exceed the elastic limit of a substance by applying a sufficiently large stress.


Shear Modulus: Elasticity of Shape

Another type of deformation occurs when an object is subjected to a force parallel to one of its faces while the opposite face is held fixed by another force (Fig. 12.13a). The stress in this case is called a shear stress.

If the object is originally a rectangular block, a shear stress results in a shape whose cross section is a parallelogram.

To a first approximation (for small distortions),

no change in volume occurs with this deformation.

The shear stress as F/A, the ratio of the tangential force,F to the area,A of the face being sheared.

The shear strain is defined as the ratio dx/h, where dx is the horizontal distance that the sheared face moves and h is the height of the object. In terms of these quantities, the shear modulus is


Like Young’s modulus, the unit of shear modulus is the ratio of that for force to that for area


Bulk Modulus: Volume Elasticity

Bulk modulus characterizes the response of an object to changes in a force of uniform magnitude applied perpendicularly over the entire surface of the object as shown in Figure 12.14.


Such a uniform distribution of forces occurs when an object is immersed in a fluid. An object subject to this type of deformation undergoes a change in volume but no change in shape.

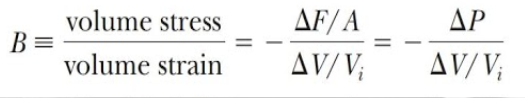

The volume stress is defined as the ratio


of the magnitude of the total force F exerted on a surface to the area A of the surface. The quantity P = F/A is called pressure


If the pressure on an object changes by an amount ∆P = ∆F/A, the object experiences a volume change ∆V.


The volume strain is equal to the change in volume ∆V divided by the initial volume Vi.


If the pressure on an object changes by an amount ∆P = ∆F/A, the object


experiences a volume change ∆V. The volume strain is equal to the change in volume


∆V divided by the initial volume Vi.






Proportional and Elastic limits

The extension of a thin wire such as Q for increasing loads of forces F may be found by experiment to be as follows:



When the extension, e, is plotted against the force F in the wire, a graph is obtained which is a straight line OA, followed by a curve ABY rising slowly at first and then very sharply. figure 5.1(ii). Up to A, about 50 N, the results show that the extension increased by 0.014 mm per N added to the wire. A, then, is the proportional limit.


Along OA, and upto L just beyond A, the wire returned to its original length when the load was removed. The force at L is called the elastic limit. Along OL the metal is said to undergo changes called elastic deformation.





Hooke’s law



From the straight line graph OA, we deduce that the extension is proportional to the force or tension in a wire if the proportional limit is not exceeded. This is known as Hooke’s law after Robert Hooke, founder of the Royal Society, who discovered the relation in 1676.


The extension of wire is due to the displacement of its molecules from their mean position. So the law Shows that when a molecule of the metal is slightly displaced from its mean position the restoring force is proportional to its displacement. One may therefore conclude that the molecules of a solid metal undergoing Simple Harmonic Motion. Up to the elastic limit the energy gained or stored by a stretched wire is molecular Potential energy, which is recovered when the load is removed.


Molecular explanation of Hooke’s Law


Consider a plot of intermolecular force F,against intermolecular separation r for a solid as shown in figure 10.10.


When stress is zero, the means separation of the molecule is ‘Ro’. A tensile stress acts in opposition to the attractive forces between the molecules and is therefore capable of increasing their separation. For values of ‘r' close to ‘Ro’, is the graph can be considered to be linear. In this region, equal increase in tensile stress produces the equal increase in extension, which perfectly explain the consequence of hooke’s law but the law cannot explain the relation between stress and strain out of this region. Note that Hooke’s law also applies to compressive stress




Experimental Verification of Hooke's Law and the Determination of Young's Modulus


Consider an experimental arrangement as shown in figure 10.11(i). It consists of two long wires P and Q are suspended from a rigid support. Both the wires are made from the same material and are of same length so that errors due to expansion as a result of temperature changes during the experiment are avoided. At the end of the wire, P a small fixed load is attached to it. Here the test wire is the wire Q, at the end of which variable load is attached. A vernier scale V which can slide over the reference scale M is also attached to it which measures the extension of the wire Q.


The initial length of the wire Q is first noted and its diameter is measured with the help of micrometre screw gauge. Let ‘L' and ‘d' be the length and diameter of the wire respectively. The test wire Q then loaded (typically up to 100 N in 5 steps) and the resulting extension is measured as a function of the load. If test wire is free of kinks at the start and the limit of proportionality is not exceeded, the measurements can be used to produce a plot similar to the figure 10.11(ii) Clearly, the graph suggest that load is directly proportional to the extension produced which verifies hooke’s law.



Further we know,


 Young's Modulus (Y) = stress/strain


                                   = (F/A)/(x/L)


                                   = L/A(x/F)


Where, F = applied load


            A = area of cross-section of the wire


            X = extension produced and


            L is original length


By measuring the slope of the graph above, we can calculate (x/F). L can be measured with an extending ruler or a metre scale and A is obtained by determining the diameter of wire at several places with a micrometre screw gauge. Thus, knowing (x/F), L and A, we can calculate the Young's Modulus of the material of the body.



Some Special Terms










    Poussin’s Ratio: When a rod or wire is subjected to a tensile force, there is increase in dimension of the rod or wire along the direction of force. The increase in dimension per unit original dimension along the direction of applied force is called longitudinal strain(α).


    Similarly, there is decrease in the dimension of rod a wire in the direction perpendicular to applied force. This decrease in dimension per unit original dimension perpendicular to the direction of applied force is called lateral strain(β).


    More accurately, instead of using ‘increase’ or ‘decrease’ it is prefer to use the term ‘change’. Experimentally, it is found that lateral strain is directly proportional to longitudinal strain within elastic limit.





    Where,     is the elastic constant known as poisson’s ratio.


    Thus, Poisson’s ratio is the ratio of lateral strain to longitudinal strain.

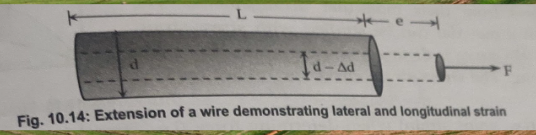

    Let us consider a wire of original length 'L' and diameter ‘d' is stretched by force ‘F' as shown in figure 10.14. Let ‘e' be the increase in length and ∆d be the decrease in diameter. Then,


    Lateral strain= –∆d/d (–ve sign shows that if length increases then diameter decreases)


    Longitudinal strain = e/L


          or, σ = (–∆d/d) / (e/L)


               σ = –(∆d/d)*(L/e)



    Being just a ratio between two strains poisson’s ratio is a pure number having no units and dimension. It's value usually lies between 0.2 to 0.4.


    Elastic after effect: Some materials such as quartz fibre, phosphor bronze, etc. regain their original configuration instantaneously after the removal of deforming forces while other material such as glass fibres appreciably long time to do so.


    This temporary delay in gaining the original configuration by a body after deforming forces have been removed is called elastic after effect


    Elastic after effect is negligibly small for quartz fibres, phosphor bronze, etc. while it is large for glass fibres. A glass fibre will take hours to regain its original configuration.


    Elastic fatigue: A material gradually loses its elastic strength due to the repeated alternating strains. For example, hard wire can be broken by bending it repeatedly in opposite direction. This loss of elastic behaviour is called elastic fatigue or elastic tiredness. Therefore, Elastic fatigue is defined as the loss of elastic strength of a material caused due to repeated alternating strains to which the material is subjected. For the same reason, a bridge after long use, is declared unsafe. Similarly, due to the same reason, spring balance shows wrong reading after long use.


    Elastic Hysteresis: When a material (like rubber) is stretched a few times its natural length, it returns to its original length after removal of the forces. This proverty arises from their molecular arrangements.



    The elastic behaviour of a material can be studied with stress-strain curve. The stress-strain curve is distinctly different in rubber than that of a metallic wire. The stress-strain curve for a rubber cord is shown in figure 10.15.



    The rubber extends (i.e., gains strain) when deforming force (i.e., stress) is applied in it. When the deforming force is gradually reduced, original curve is not retracted, although the sample rubber finally acquires its natural length. The work done by the material in returning to its original shape is less than the work done by the deforming force.


    The difference of energy is absorbed by the material and appears as heat. This phenomenon is called elastic hysteresis.


    There are some applications of Elastic Hysteresis:




    1. Car tyres are made with synthetic rubbers having a small hysteresis loops because the tyre made of such rubber will not get successively heated during the journey.


    2. A padding of vulcanized rubber having large hysteresis loop is used in shock absorber between the vibrating system and the flat board. As the rubber is compressed and released during its vibration, it dissipates a large amount of vibrational energy.






      Energy stored in a stretched wire

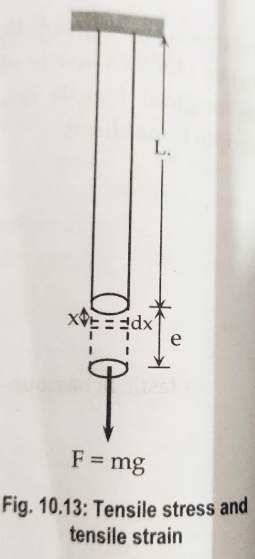

      Let us consider a wire of length L suspended from a rigid support let a force f is applied to its lower end so as to extend it by a length x as shown in the figure 10.13 if the extension is at first increased by dx is so small that yep can be considered constant then the small work done dW is given by bhai


                  dW = F dx


      The total work done on increasing the extension from zero Tu is then


                 W = ∫ F dx


      If the wire of hooks law then F = kx; where k is constant.


                W =  ∫ kxdx = ke^2/2


      Alternatively since F = me, substituting for k in equation (10.10) gives,


               W = Fe/2



               W = ½*stretching force*extension



      When wire is stretched, work done is against the internal restoring force acting between the particles (molecules) of the wire. This work done appears as elastic potential energy in the wire which is also called as the strain energy stored in the wire. On the molecular level, this corresponds to the increased potential energy of the molecules which results from their increased separation.


                   Strain energy = ½*Fe


      A wire of length L and cross-sectional area A has a volume AL and therefore,


       Strain energy per unit volume (U) = (½*Fe)/AL = ½*(F/A)*(e/L)



       Elastic energy density (U) = ½*stress*strain





















      Factors Affecting Elasticity


      Effect of temperature: A change in temperature affects the electricity properties of a material. In general, a rise in temperature results in weakening of the elastic properties and a fall in temperature in strengthening them however the elasticity of invar does not change with temperature.


      Effects of the presence of impurities: The effect of the addition of impurities in a material may increase or decrease the elastic properties according as the impurities are themselves more elastic or plastic then the materials to which they are added.


      Effects of hammering and rolling: Hammering and rolling bricks of the crystal grains into smaller units which strengthens the elastic properties.


      Effects of annealing: Annealingng refers to a form of heat treatment to a metal to soften it and then allowing it to cool slowly search process tends to orient the crystal grains into one particular direction forming a larger crystal grains. Hence, the elasticity of the material decreases.
