De Morgan's Law

0 Questions 1591 Views

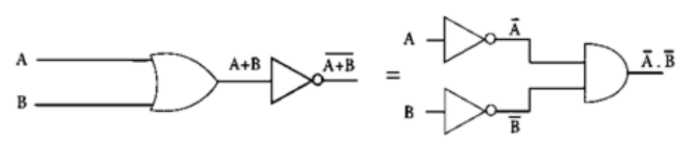

# First Theorem
It states that “The complement of a sum equals to the product of the complements.”
i.e.,
➡ (A + B)’ = A’.B’

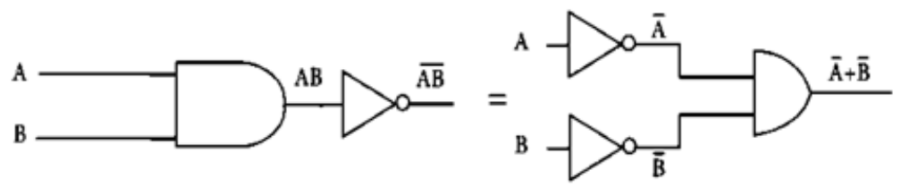

# Second Theorem

It states that “The complement of a product is equal to the sum of the complements.”
i.e.,
➡ (A.B)’ = A’ + B’
