Associative Law

0 Questions 1241 Views

It allows for the removal of brackets from an expression and regrouping of the variables.
i.e.

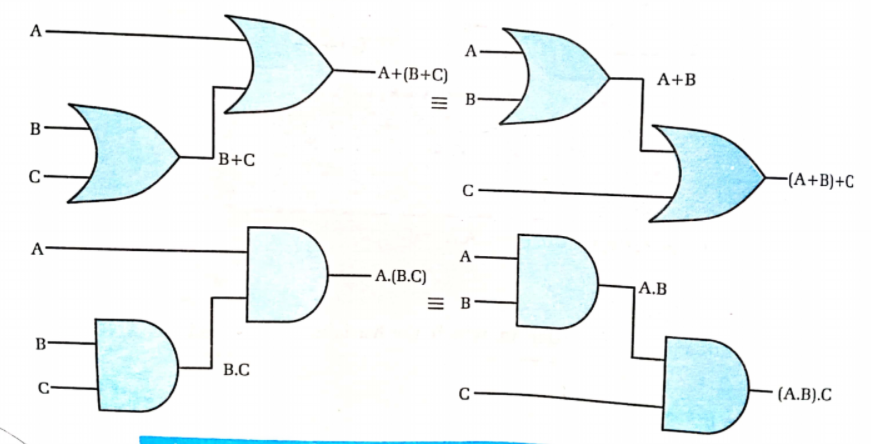

➡ (A + B) + C = A + (B + C)
➡ (A.B).C = A.(B.C)

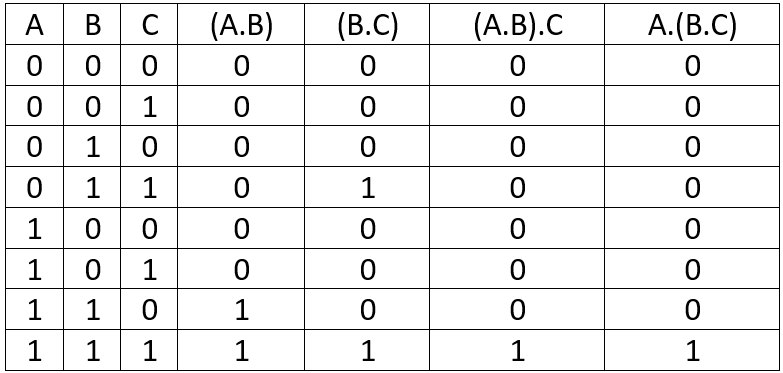

Proof:

Hence, (A + B) + C = A + (B + C) & (A.B).C = A.(B.C)
