Commutative Law

0 Questions 1403 Views

It states that the interchanging the order of operands in a Boolean equation doesn’t change its result.
i.e.,
➡ (A + B) = (B + A)
➡ A.B = B.A

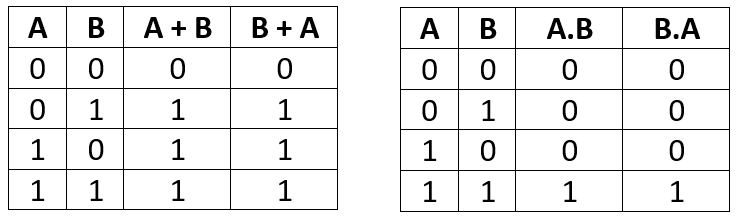

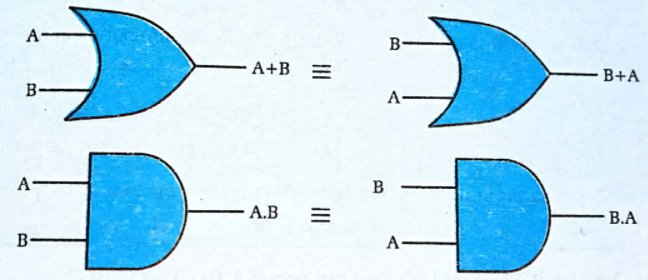

Proof:

Hence, (A + B) = (B + A) & A.B = B.A
